I. Core Material: Premium 6061-T6 Forged Aluminum Alloy — Outstanding Comprehensive PerformanceThis product is manufactured as a single-piece precision forging from high-purity, certified 6061-T6 aluminum alloy billets sourced exclusively from reputable domestic manufacturers. The material exhibits excellent and consistent physical–chemical properties.
•
After T6 artificial aging heat treatment, the alloy achieves superior structural rigidity combined with exceptional lightweight characteristics. It delivers outstanding resistance to bending and torsion—ideal for long-axis applications where deflection or deformation under load must be minimized.
•
The base material possesses inherent oxidation resistance and natural corrosion resistance, making it highly suitable for diverse internal equipment environments (e.g., humid, dusty, or mildly aggressive atmospheres).
•
Its excellent machinability—enabled by fine, uniform microstructure and high dimensional stability—ensures minimal thermal or stress-induced distortion during and after machining, even under prolonged continuous operation. Surface treatments such as anodizing (standard, hard, or colored) can be seamlessly integrated to enhance wear resistance, electrical insulation, and aesthetic finish—without compromising mechanical integrity.
•
Full traceability is guaranteed: Every batch is accompanied by a complete certified material test report (CMTR), including chemical composition analysis. Performance parameters—including tensile strength, yield strength, and elongation—are strictly controlled and consistent across all production lots.
II. Precision Manufacturing: Integrated CNC Turning — Full-Dimensional High-Accuracy ControlThe entire part is produced via a fully integrated, high-precision 5-axis Swiss-type CNC turning process—eliminating segmented assembly, welding, or secondary joining operations.
1.

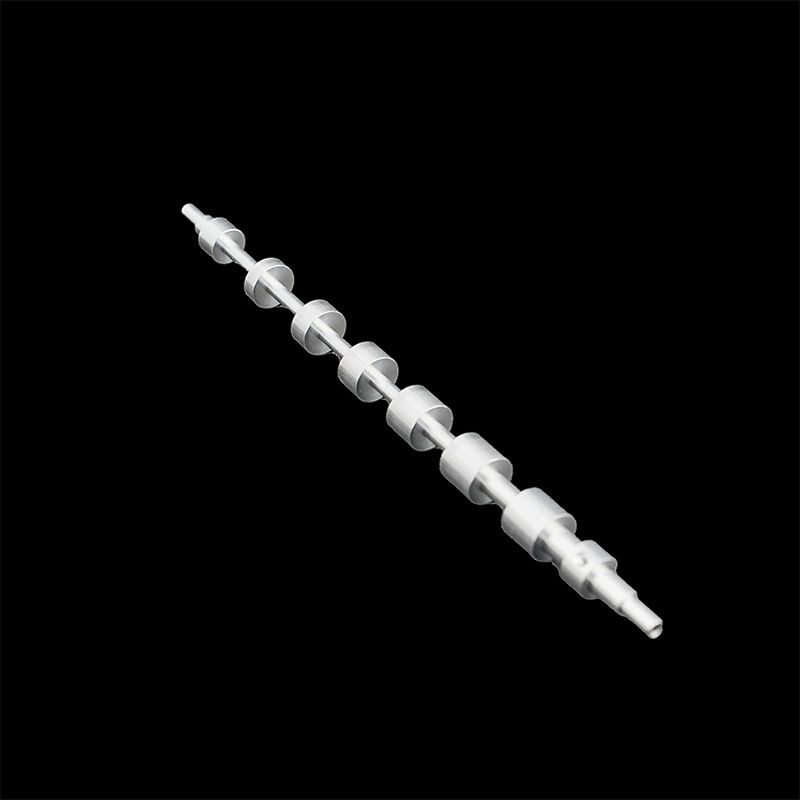

Monolithic Long-Axis Construction Multiple concentric stepped shoulders, the central smooth shaft section, and precision-machined locating journals at both ends are all turned in a single setup. Ultra-tight coaxiality tolerance ensures zero eccentric runout or axial play during rotation—critical for high-speed or high-accuracy transmission applications. Exceptional straightness over the full length significantly outperforms multi-part assembled shafts in dynamic stability and service life.
2.
Multi-Step Profile Precision Machining All shoulder diameters are uniformly dimensioned and tightly controlled; transitions feature smooth, radius-blended arcs; end faces are perfectly perpendicular and mirror-finished. Axial spacing between features is held to micron-level accuracy—ensuring perfect mating with bearings, housings, seals, and mounting components.
3.
Full-Dimensional Tight-Tolerance Control Critical dimensions—including overall length, individual shoulder diameters, journal sizes, and feature locations—are maintained to stringent ISO/ANSI GD&T specifications. Straightness and total runout (coaxiality) meet aerospace-grade standards. Batch-to-batch dimensional consistency enables true “plug-and-play” installation—zero rework or fitting required.
4.
Refined Surface 系统结束工具名ing The entire shaft undergoes final precision turning and polishing to achieve superior surface roughness (Ra ≤ 0.4 µm). All edges are fully deburred and chamfered—no burrs, sharp corners, or tool marks remain. Optional surface treatments include:
Hard anodizing (for extreme wear resistance and durability)
•
Colored anodizing (black, gold, red, etc., for identification or aesthetics)
5.
End-to-End Quality Assurance System Every unit undergoes 100% inspection using advanced metrology tools:
•
2D/3D vision measuring systems
•
Surface roughness testers
•
Dedicated shaft inspection fixtures (runout, straightness, diameter gauging) Only units passing all dimensional, geometric, and cosmetic criteria are approved for shipment. Batch-level quality reports—including full GD&T verification data—are provided with each order.
III. Application Scope: Broad Industry Compatibility & Versatile DeploymentThis multi-step monolithic aluminum precision long shaft serves as a critical functional component for transmission, support, and guidance within compact, high-precision equipment. Its lightweight strength-to-weight ratio and dimensional fidelity make it ideal across multiple high-value sectors:
•
Automation Equipment: Drive shafts for precision conveyors, robotic actuators, pneumatic positioning modules, and linear motion systems.
•
3C & Intelligent Electronics: Spindles and guide shafts for semiconductor handling robots, optical alignment stages, miniature test instruments, and smart consumer electronics.
•
New Energy Systems: Lightweight drive and support shafts for photovoltaic tracking mechanisms, battery module actuators, small-scale fluid control valves, and energy storage system components.
•
Smart Home & Appliances: Precision shafts for intelligent conveyor belts, compact motorized furniture actuators, robotic vacuum cleaners, and smart kitchen appliances.
•
Light Industrial & Lab Equipment: Motion shafts for analytical instruments, medical device mechanisms, lab automation platforms, and portable diagnostic devices.
•
General Precision Machinery: Custom shaft solutions for light-duty gearboxes, modular tooling systems, jig & fixture assemblies, and OEM equipment integration.
IV. End-to-End Customer-Centric Service — Seamless Collaboration & Long-Term PartnershipAs an original-equipment aluminum precision machining manufacturer, we deliver far more than finished parts—we provide a full-cycle, value-added engineering partnership:
1.
Fully Customizable Engineering Support Simply share your 2D drawings or 3D CAD models (STEP, IGES, SolidWorks, etc.), and our technical team will provide: ✅ Free DFM (Design for Manufacturability) review & optimization suggestions ✅ Process feasibility assessment & lead-time estimation ✅ Accurate quotation based on real-time material, labor, and tooling costs ✅ Tailored recommendations for geometry, tolerancing, surface finish, and anodizing specification—fully aligned with your space constraints, load requirements, and assembly interfaces.
2.
Rapid Prototyping & Reliable Mass Production
•
Small-batch prototyping available within 5–7 working days—enabling fast functional validation and design iteration.
•
Scalable production capacity with dedicated CNC lines and robust supply chain management—guaranteeing on-time delivery for pilot runs, volume orders, and export shipments.
3.
End-to-End Traceability & Quality Guarantee
•
Raw material certificates and CMTRs included with every lot.
•
Full inspection reports accompany every shipment: dimensional verification, GD&T compliance, surface finish data, and visual quality records.
•
Zero-defect commitment: Non-conformities due to manufacturing error are resolved promptly with root-cause analysis and corrective action—no cost to you.
4.
Dedicated Supply Chain Partnership
•
Direct factory pricing—no distributors or middlemen markup.
•
Volume-based tiered pricing and flexible payment terms for long-term partners.
•
24/7 bilingual technical support—from initial selection and application engineering to post-installation troubleshooting and lifecycle optimization.
